Air Suspension System for 1968-1972 GM “A” Body

From: $5,350.00

Air Suspension System for 68-72 GM “A” Body. Includes front & rear HQ Series ShockWaves, front & rear StrongArms, Tall Spindles and front & rear MuscleBars.

Clear

 California Prop 65 Warning

Description

This Air Suspension System is specifically designed for the 1968-1972 GM “A” Body Platform and includes everything needed to create modern driveability with an ultra low show stance. The package contains front upper and lower control arms, tall spindles, front & rear MuscleBars, rear StrongArms and 4 HQ Series Shockwaves. The benefit of buying a complete suspension system is that it takes all of the guesswork out when purchasing a new suspension.  1968-1972 GM “A” Body includes Chevelle, Cutlass, El Camino, F85, Grand Prix (69-72), GS, GTO, LeMans, Malibu, Monte Carlo, Skylark, Special, Sportwagon, Tempest and Vista Cruiser.

Features:

  • RideTech Tall Spindles will induce more negative camber gain to maximize tire contact patch during cornering. It also offers a 2” pin drop which allows for the use of longer shocks creating more suspension travel.
  • Upper StrongArms feature corrected ball joint angles for the tall spindles. The upper ball joint have been moved back to allow for additional caster setting to improve high speed stability and steering feel. Offset slugs are also available for additional caster. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.
  • Lower StrongArms feature a double sheer lower mount for increased strength. We have also dropped the lower shock mount to increase suspension travel and moved the lower ball joint forward to increase caster settings while keeping the wheel centered in the wheel opening. Injection molded Delrin bushings with 13% Teflon are used to reduce deflection and stiction.

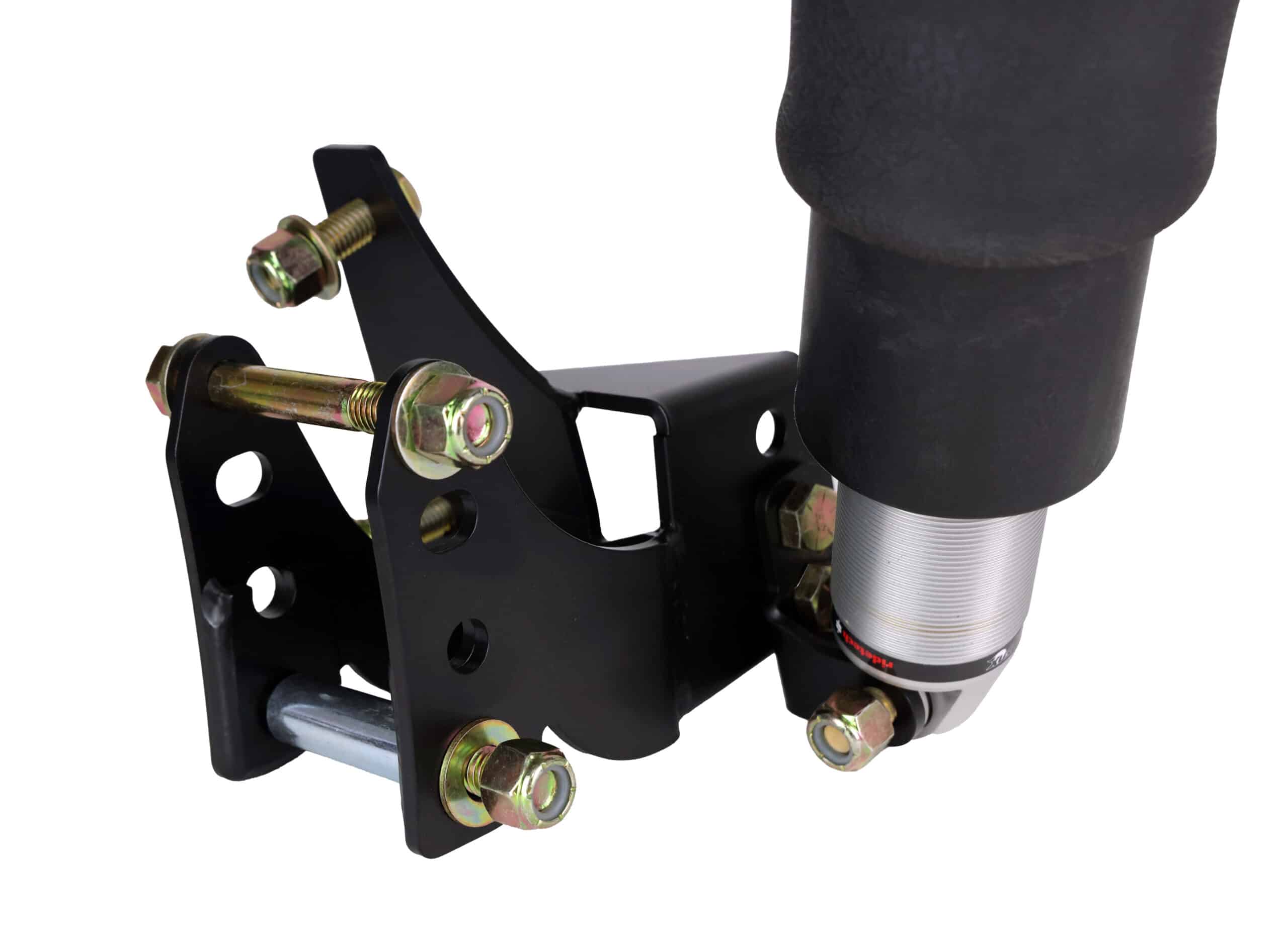

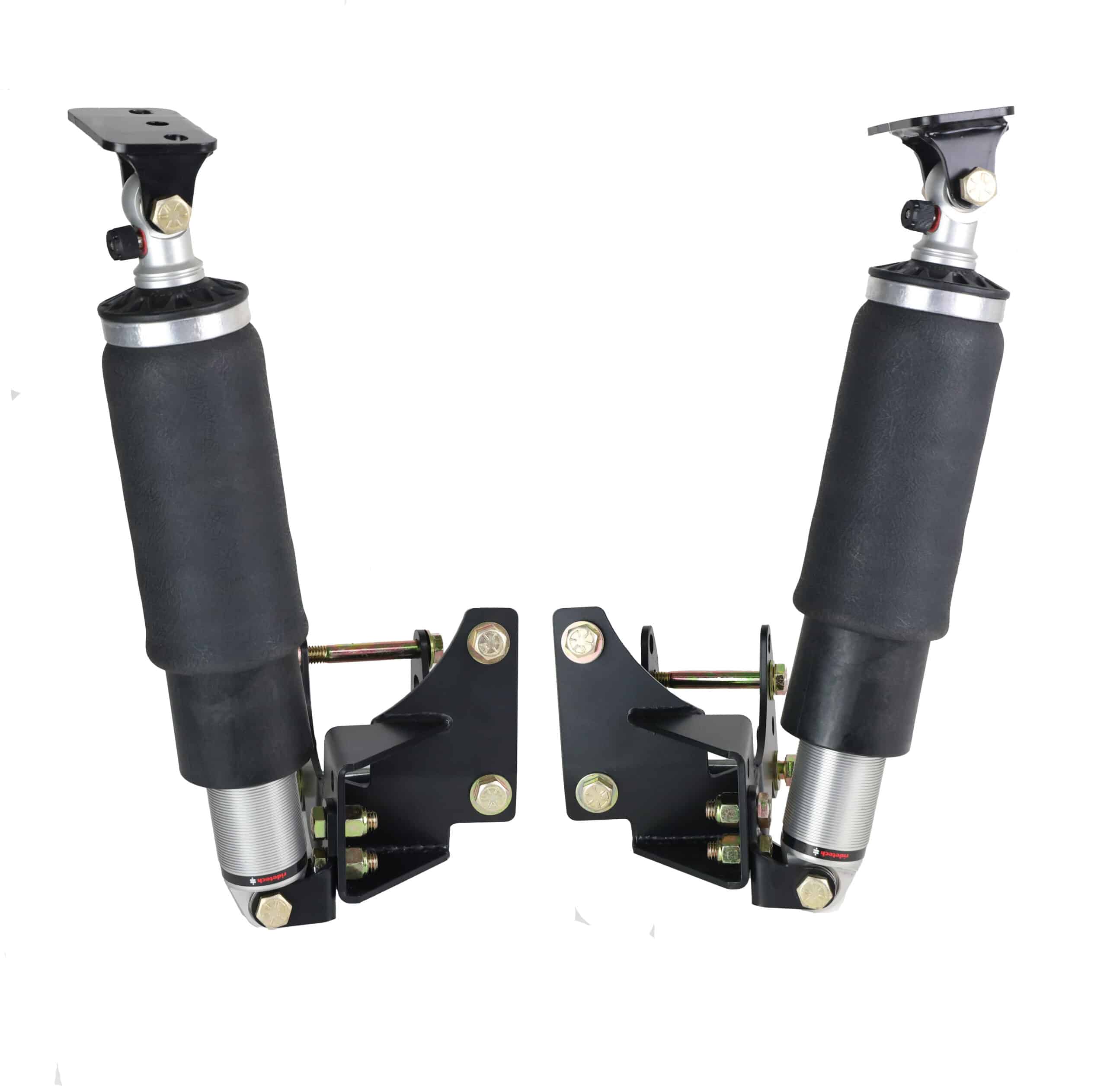

  • HQ Series Shockwaves utilize an impact forged aluminum body and Monotube design to deliver excellent ride quality and handling.     They allow fine tuning of the ride quality and handling the rebound knob is located at the top of the shock for under hood access. They come standard with a 1,000,0001 Mile Warranty.  Brackets are included witht the rear coilovers for easy attachment to the frame and to the 10/12 bolt rearend or Currie 9″.  Brackets for a Moser rearend are also available.
  • Front MucleBar helps reduce body roll and creates room for wider front tires. It includes the PosiLink endlinks that provide immediate engagement between the chassis and control arms.  An adjustable rate Rear MuscleBar is also included.
  • Rear StrongArms  provide added strength to help get the power to the pavement and utilize R-Joint Technology to combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack.

***  Control system not included.  To complete this Air Suspension system please choose from one of our Compressor Systems.

UPGRADES

  • TQ Series Shocks- The remote reservoir triple adjustable coil-over shocks feature rebound adjustment along with dual stage (High Speed & Low Speed) compression adjustment.   High speed adjustment allows tuning for impact harshness and low speed adjustment allows tuning of cornering characteristics, perfect for use on the autocross, road course and drag strip.  Read More
Videos

Instructions

11240298_WEB.pdf

Single Adjustable Air Suspension Kit Instructions

11240398_WEB.pdf

Tripe Adjustable Air Suspension Kit Instructions

19-shock-tuning-guide.pdf

Shock Tuning Guide

TQ_Intake_Sheet.pdf

TQ Intake Sheet

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Air Suspension System for 1968-1972 GM “A” Body”

Vehicle Fitment
Make Model Year
BUICK GS 1970 - 1972
BUICK GS 455 1970 - 1972
BUICK SKYLARK 1968 - 1972
BUICK SPECIAL 1968 - 1969
BUICK SPORTWAGON 1968 - 1972
CHEVROLET CHEVELLE 1968 - 1972
CHEVROLET EL CAMINO 1968 - 1972
CHEVROLET MONTE CARLO 1970 - 1972
OLDSMOBILE 442 1968 - 1971
OLDSMOBILE CUTLASS 1968 - 1972
OLDSMOBILE CUTLASS SUPREME 1968 - 1972
OLDSMOBILE F85 1968 - 1972
OLDSMOBILE VISTA CRUISER 1968 - 1972
PONTIAC GRAND PRIX 1969 - 1972
PONTIAC GTO 1968 - 1972
PONTIAC LEMANS 1968 - 1972
PONTIAC TEMPEST 1968 - 1970
